VIP Vision Access Control Card & Keypad Reader – Slimline 2
$56.14 .. inc GST
In stock
AC-WRC-CK

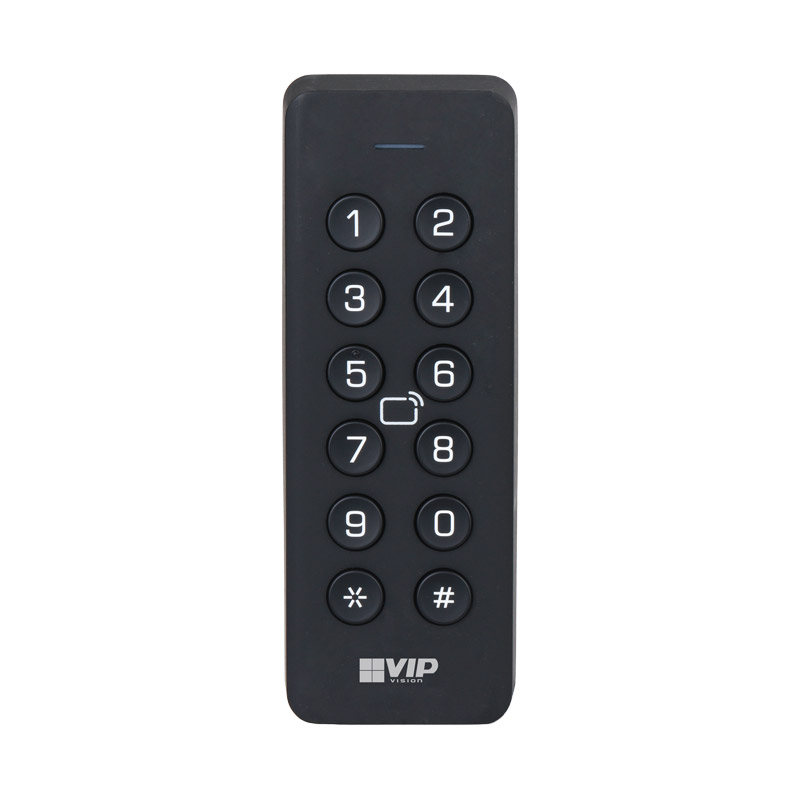

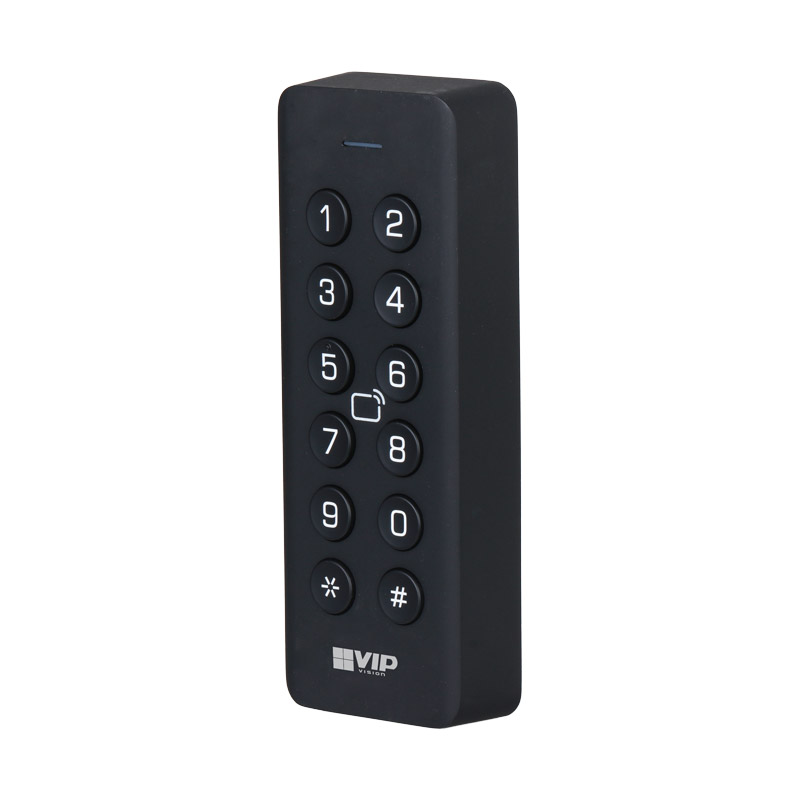

The AC-WRC-CK reader in the AC-W Series is a slimline, surface mount card and keypad authentication reader, with durable design and quick surface mount installation. Users are prompted to access alerts via audio and LED indicator cues for a smooth access control experience, ideal for commercial applications.
• Card and keypad reader authentication
• Web management via controller and web browser
• RS-485 or Wiegand protocol via 13.56MHz RFID
• Reader can enroll new access cards or keyfobs
• RGB LED and chime for user audio/visual prompts
• Polycarbonate housing with anti-tamper alarm
• IP66 weather rated (fitted as per install guidelines)
| Weight | 0.12 kg |
|---|---|
| Dimensions | 50 × 75 × 140 mm |
| Communication | RS-485 / Wiegand 34 |
| Audio | Buzzer |

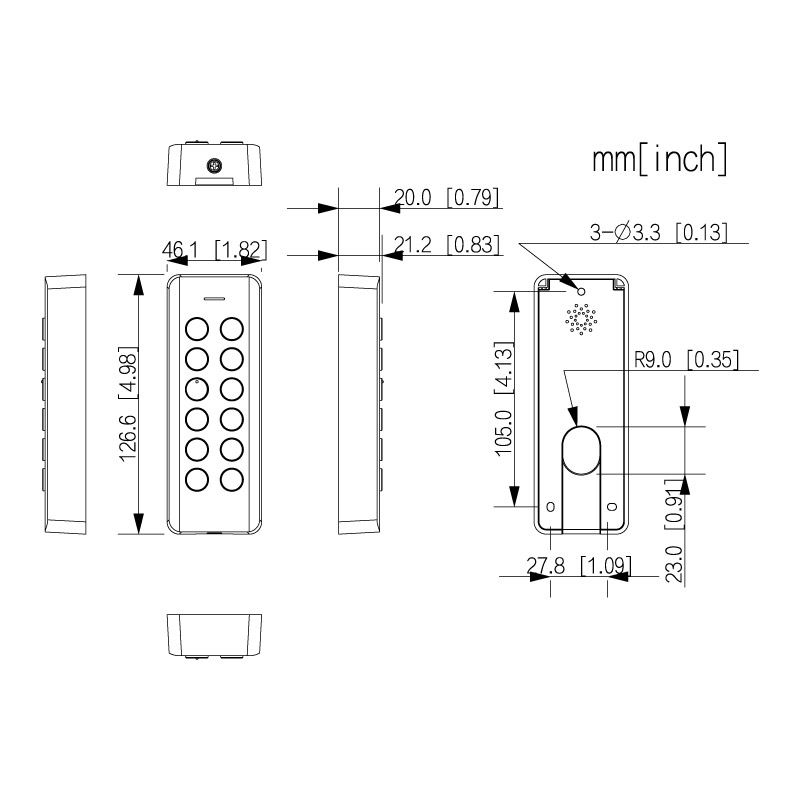

| Dimensions | 127 x 46 x 20mm |
| Fingerprint Scan | – |
| Ingress Protection | IP66 (when fitted as per product installation guidelines) |
| Keypad | 12 Touch Keys (0-9,*,#) |
| Light | RGB LED Indicator Light |
| Net Weight | 0.10kg |
| Operating Conditions | -30°~+70° C / <95% RH |
| Power Supply | 12VDC 0.5A, Consumption: ?0.5W (Standby), ?1.7W |
| Product | Card/Keypad Reader |
| RFID Format | 13.56MHz (Mifare) |
| RFID Read Range | ?8cm |
| RFID Read Time | 0.1s |
| Tamper Switch | Yes |
| Vandal Protection | – |
